  • Smart Zebra Floor Tile (Red)

›

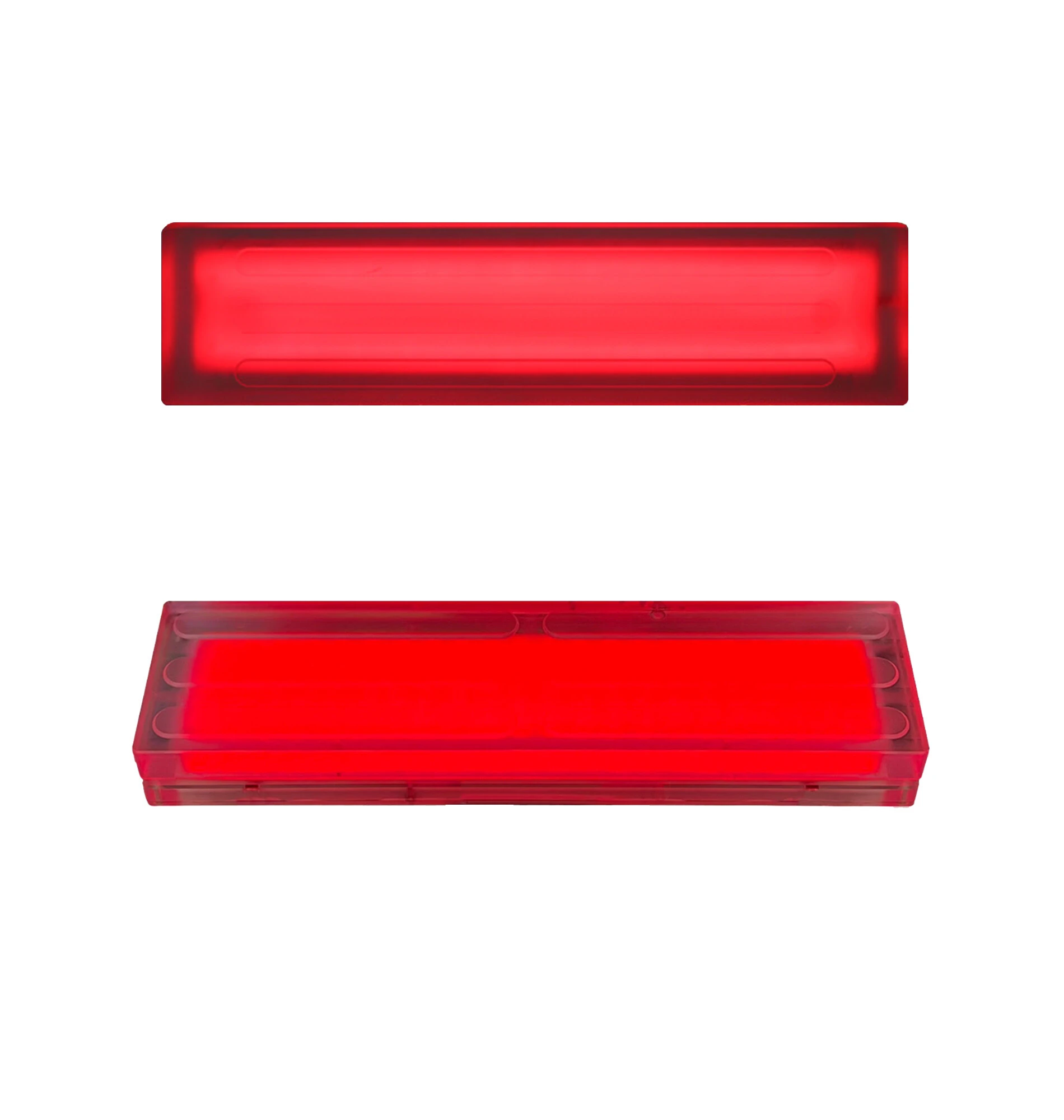

Smart Zebra Floor Tile (Red)
Contact Us
Product Specifications
Features
Product Dimensions
Light-emitting diode parametersDescriptive
Red LED ParametersLuminous intensity:3550-5250mcd, Vf:1.8-2.2V, Wavelength:620-630nm
Green LED ParametersLuminous intensity:7220-10400mcd, Vf:2.8-3.2V, Wavelength:503-506nm
Display parametersDescriptive
sizes400x130x60mm
power (output)Red:≤2W, Green:≤2W
power supplyCE compliant switching power supply, constant current driver/constant voltage driver
Text change≤1.0mA
Voice function parametersDescriptive
materialpolycarbonate
heat-resistant+80±2℃
low temperature resistance-40±3℃
heat and humidity resistance93%-97%
weathering resistanceLaboratory 600h artificial climate accelerated aging, without any cracks, depressions, erosion, bubbles, peeling, pulverization or deformation and other defects
light-emitting diodeDescriptive
raw materialsHigh Brightness Light Emitting Diode (LED)
light decay10000h/3 years working time, light decay (mcd) ≤ 20%
power supplyDescriptive
Switching Power Supply (AC)Optional power supply, support DC12V/DC24V two kinds of input voltage
printed circuit board (PCB)Descriptive
PCB MaterialEpoxy glass cloth laminate (FR4), using Kingboard A2 sheet, plate thickness ≥ 1.6mm
three-proof treatmentThe use of silicone three-proof paint, evenly painted on the PCB line side, can be effective moisture-proof moisture, anti-salt spray, anti-static, anti-mildew and other features

A number of patent certificates and product certificates
